In steel processing, efficiency and precision are essential at every production stage. The uncoiler is a key machine that holds and feeds steel coils into downstream equipment, and its performance depends on the mandrel. A mandrel serves as the core support for the coil, securely holding it while allowing smooth rotation during uncoiling. Proper mandrel design ensures consistent tension, prevents coil deformation or misalignment, and improves overall operational efficiency. Understanding its role is vital for manufacturers and operators aiming to optimize production lines and reduce downtime.

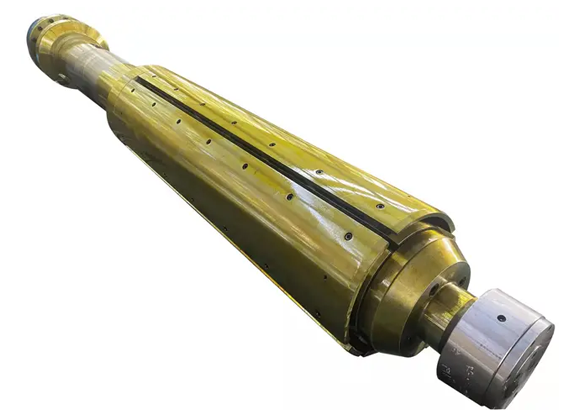

A mandrel in an uncoiler is a cylindrical device that serves as the central core around which a steel coil is mounted. It is one of the most critical components of an uncoiler system, providing the mechanical support necessary for stable coil handling and smooth unwinding. By fitting securely inside the inner diameter of the steel coil, the mandrel ensures that the coil remains properly aligned and rotates evenly during the uncoiling process.
Structurally, a typical uncoiler mandrel consists of several key parts:
Core Tube: The main cylindrical body that fits inside the coil. It must be strong enough to bear the coil’s weight and maintain rigidity.
Expansion Mechanism: Most mandrels are equipped with hydraulic or mechanical expansion systems that allow the mandrel to expand and lock firmly inside the coil. This prevents slippage and ensures safe operation.
End Plates or Cones: These components help center the coil and provide additional stability during rotation.
Drive or Rotation Interface: In some advanced uncoiler systems, the mandrel may connect to a drive unit to assist in controlled coil rotation, particularly for heavy or high-speed operations.
The position of the mandrel is central within the uncoiler. It is inserted into the coil from one end, expanded to grip the inner surface, and then mounted onto the uncoiler frame. The mandrel supports the coil’s weight and allows it to rotate freely while maintaining proper tension, which is essential for downstream processes such as slitting, cutting, or rolling.
In summary, the mandrel is more than just a support rod—it is the core component that ensures smooth, safe, and efficient uncoiling of steel coils. Without a reliable mandrel, an uncoiler cannot function effectively, leading to potential material damage, production delays, or safety hazards.
The operation of a mandrel in an uncoiler is central to the smooth and efficient uncoiling of steel coils. Its main functions—clamping, securing, and rotating the coil—ensure that the material is fed into downstream processes without disruption.
Most uncoiler mandrels feature an expansion mechanism, either hydraulic or mechanical, which allows the mandrel to adjust its diameter. When the mandrel is inserted into the inner diameter of a steel coil, the expansion system activates, pressing the mandrel outward to firmly grip the coil from the inside. This clamping action prevents slippage during uncoiling and accommodates slight variations in coil inner diameters. Proper clamping ensures that the coil remains stable, avoiding vibrations, misalignment, or sudden unwinding that could damage the material or halt production.
Once expanded, the mandrel not only holds the coil in place but also transfers the weight of the coil safely onto the uncoiler frame. End plates or centering cones at each side of the mandrel further stabilize the coil, maintaining alignment along the rotation axis. This ensures that the steel strip unwinds evenly, maintaining consistent tension throughout the uncoiling process, which is critical for high-precision operations such as slitting, leveling, or cold rolling.
With the coil firmly clamped, the mandrel allows the steel coil to rotate freely as the material is pulled into downstream equipment. In many modern uncoilers, the mandrel can be connected to a motor or drive system, enabling controlled rotation. This is particularly useful for large or heavy coils, as it reduces manual intervention and ensures a smooth, continuous feed. The rotation of the mandrel, combined with precise tension control, prevents material stretching, wrinkling, or deformation.
Mandrels are designed with safety in mind. Properly expanded mandrels prevent coil slippage, which could otherwise cause accidents or damage to machinery. Additionally, by ensuring smooth rotation and stable feeding, mandrels increase the operational efficiency of the uncoiler, reducing downtime and enhancing overall productivity.
In short, the mandrel acts as both a support and a facilitator in the uncoiling process. Its ability to clamp, secure, and rotate the coil makes it indispensable for modern steel processing operations.
A high-quality mandrel for an uncoiler is composed of several critical components that work together to ensure stable, efficient, and safe steel coil handling. Understanding these key parts is essential for operators and engineers to maintain and optimize uncoiling operations.
The locking mechanism is responsible for securely fastening the mandrel inside the steel coil. Typically, this is achieved through hydraulic or mechanical locks that expand outward to grip the inner diameter of the coil. The locking system prevents slippage during rotation, ensuring the coil remains centered and stable while unwinding. Some advanced mandrels also feature automated locking systems that adjust to variations in coil size, providing a reliable grip for different coil diameters without manual intervention.
The expansion device is a core component that allows the mandrel to adjust its diameter. Hydraulic expansion is commonly used for heavy or large coils, providing smooth and precise diameter adjustments. Mechanical expansion, such as cam or screw systems, is often employed for lighter applications or smaller coils. The expansion device ensures that the mandrel fits snugly inside the coil, accommodating variations in coil inner diameters while maintaining consistent clamping force.
Many modern uncoilers integrate a drive or power system with the mandrel to assist in rotation. This system can be electric, hydraulic, or pneumatic, depending on the production line requirements. The drive system enables controlled rotation of heavy steel coils, reducing manual effort and preventing sudden movements that could damage the material. By regulating the speed and torque, the drive system also maintains proper tension in the steel strip during uncoiling.
End plates or centering cones are used to stabilize the coil on the mandrel, ensuring proper alignment along the rotation axis. These components minimize wobbling and maintain uniform coil rotation, which is critical for precision operations such as slitting, cutting, or rolling.
Modern mandrels often include additional safety components, such as pressure relief valves for hydraulic systems and overload protection mechanisms, to prevent equipment damage and ensure operator safety.
In combination, these key components enable a mandrel to provide secure clamping, precise expansion, and smooth rotation—making it the indispensable core of an uncoiler system in steel processing operations.
In steel processing, maintaining stability and consistency during uncoiling is essential for product quality and operational efficiency. The mandrel plays a pivotal role in achieving this by securely supporting the steel coil and ensuring smooth rotation.
A properly designed mandrel holds the coil firmly in place, preventing wobbling or misalignment during uncoiling. This stability is crucial, especially when dealing with large or heavy coils, as any movement can lead to uneven unwinding or material deformation. By keeping the coil stable, the mandrel ensures that downstream processes, such as cutting, slitting, or rolling, receive steel strips at consistent tension and alignment.
Without a reliable mandrel, steel coils can slip or loosen during rotation, which may cause production stoppages, equipment damage, or even safety hazards. The mandrel’s locking and expansion mechanisms securely clamp the coil, eliminating slippage and maintaining proper tension throughout the uncoiling process. This is particularly important in high-speed production lines where precision and safety are paramount.
By stabilizing the coil and preventing operational issues, the mandrel directly contributes to higher production efficiency. Smooth and controlled uncoiling reduces downtime, minimizes material waste, and allows for faster and more reliable feeding of steel into processing machines. For manufacturers, this translates into better throughput, reduced operational costs, and improved overall productivity.
The mandrel is the core component of an uncoiler, providing essential support, stability, and precise control for steel coil handling. By securely clamping and expanding within the coil while enabling smooth rotation, it ensures safe, efficient, and consistent uncoiling operations. Key features such as the locking mechanism, expansion device, drive system, and stabilizing cones work together to prevent slippage and maintain proper tension, enhancing overall production efficiency. For steel manufacturers and plant operators seeking reliable solutions, understanding and choosing the right mandrel is crucial. To explore high-quality mandrel options, professional guidance, or custom solutions, consider reaching out to Jiyuan Yubei Machinery Co., Ltd., a trusted expert in precision mandrel manufacturing and uncoiler components.
